Tetralogy of Fallot (TOF) is the most common cyanotic congenital heart defect, characterized by a specific constellation of anatomical findings. For pediatricians, a good understanding of both clinical presentation and echocardiographic details is essential for timely referral and perioperative management.

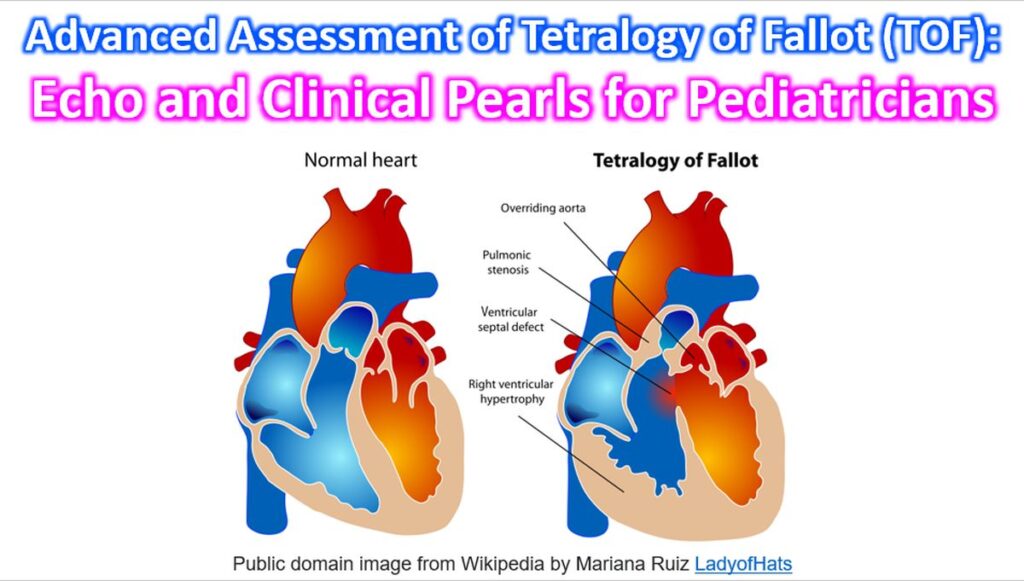

The “Core Four” Anatomy
TOF is fundamentally a disease of anterior malalignment of the conal (infundibular) septum. This single embryological error leads to the four classic features:
- VSD: Large, unrestrictive subaortic ventricular septal defect.
- RVOTO: Multilevel right ventricular outflow tract obstruction (infundibular, annular, or valvular).
- Overriding Aorta: The aorta “sits” over the VSD, receiving blood from both ventricles.
- RV Hypertrophy: A secondary response to the high-pressure environment of the right ventricle.
Clinical Pearls for the Pediatrician
1. The “Pink Tet” vs. Cyanotic Neonate
- The Spectrum: Presentation depends entirely on the degree of RVOTO.
- Pink Tets: If the obstruction is mild, the shunt may be left-to-right (like a simple VSD), and the infant appears well-oxygenated. However, as the infundibular muscle hypertrophies over the first weeks of life, they often transition to cyanosis.
- Auscultation Hint: The murmur you hear is not the VSD (which is too large to be noisy); it is the crescendo-decrescendo murmur of pulmonary stenosis. A softer murmur during a spell actually indicates worsening obstruction.
2. Managing “Tet Spells” (Hypercyanotic Episodes)
These are medical emergencies caused by a sudden increase in RVOTO or a drop in systemic vascular resistance (SVR).
- Knee-Chest Position: Increases SVR and reduces right-to-left shunting.
- Calm the Child: Agitation increases catecholamines, which worsens infundibular spasm.
- Next Steps: Oxygen, morphine (to suppress the respiratory drive/agitation), and IV fluids.
- Beta blockers
Advanced Echocardiographic Assessment
Echo remains the primary tool for surgical planning. Beyond the “core four,” specialists look for specific “surgical spoilers.”
Key Pre-Surgical Echo Parameters
| Parameter | Importance |
| Pulmonary Annulus Z-score | A Z-score < -2 to -4 often necessitates a transannular patch (TAP) rather than a valve-sparing repair. |
| Coronary Anatomy | In ~5% of cases, the LAD arises from the Right Coronary Artery and crosses the RVOT. This prevents the surgeon from making a standard incision in that area. |
| Aortic Arch Sidedness | ~25% of TOF patients have a Right Aortic Arch, which is vital information if a palliative shunt (like a Blalock-Thomas-Taussig shunt) is needed. |
| Branch Pulmonary Arteries | Must be checked for stenosis or hypoplasia (measured via the McGoon ratio or Nakata index). |
What a Z-score Actually Measures
A Z-score tells you how many standard deviations a measurement is from the mean of a healthy population.
- Z-score = 0: The measurement is exactly at the population mean.
- Z-score = +2 or -2: The measurement is roughly at the 97th or 3rd percentile.
- Significance: In most pediatric echo labs, a Z-score between -2 and +2 is considered the “normal range.”
The McGoon ratio is a simple linear measurement. It compares the size of the branch pulmonary arteries to the size of the descending aorta.
McGoon Ratio = (Diameter of RPA + Diameter of LPA)/Diameter of Descending Aorta (at diaphragm level)
Normal: ≥ 2.0
Adequate for Repair: > 1.2 (Some centers use 1.5 as a safer cutoff)
High Risk/Palliative: < 0.8 usually indicates that a shunt (like a BTT shunt) is needed first to “grow” the arteries before a full repair.
Nakata Index (Pulmonary Artery Index)
The Nakata Index is a more precise area-based measurement. It calculates the cross-sectional area of the pulmonary arteries and indexes it to the child’s Body Surface Area (BSA).
Nakata Index = (Area of RPA + Area of LPA both in sq mm)/Body Surface Area in sq m
-
- Normal: > 330 sq mm/sq m BSA
- Adequate for Repair: > 150 sq mm/sq m BSA
- High Risk: < 100 sq mm/sq m BSA often predicts poor outcomes or the need for a staged approach.
Post-Repair Monitoring
The goal of surgery is “excellent palliation,” but it often leaves the patient with pulmonary regurgitation (PR).
- The “Price of Repair”: Chronic PR leads to progressive RV dilation.
- Echo Red Flags: Paradoxical septal motion, tricuspid regurgitation (signaling RV failure), and a “low” TAPSE (Tricuspid Annular Plane Systolic Excursion) value.
Quick Reference: Differential Diagnosis
If a neonate presents with cyanosis and a boot-shaped heart on X-ray, consider:
- TOF with Pulmonary Atresia: More severe, ductal-dependent for any lung flow.
- Double Outlet Right Ventricle (DORV): If the aorta is >50% committed to the RV.
- Tricuspid Atresia: Often presents with a similar “quiet” lung field on X-ray. ECG may show LV forces in tricuspid atresia.
