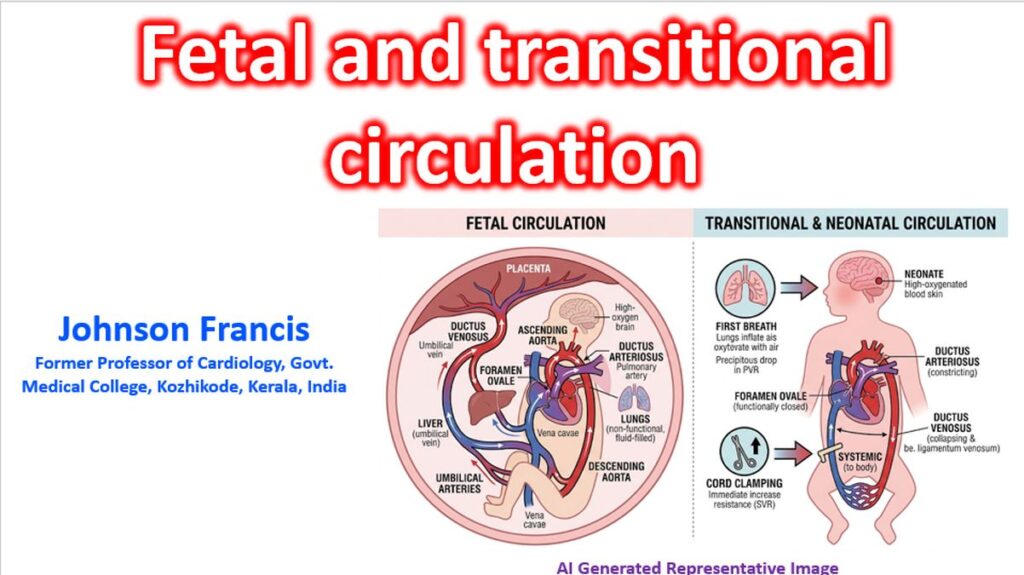

Fetal circulation is a highly specialized system designed to optimize oxygen delivery to the developing brain and myocardium while bypassing the non-functional fetal lungs and immature liver. It operates as a parallel circuit, heavily reliant on right-to-left shunting.
Here is a breakdown of the hemodynamics, the three primary shunts, and the physiological shifts that occur at birth.
1. Fetal Circulation: The Parallel Circuit
In utero, the placenta serves as the organ of gas exchange. The fetal pulmonary vascular resistance (PVR) is extremely high due to fluid-filled, hypoxic alveoli, while the systemic vascular resistance (SVR) is highly diminished due to the large, low-resistance placental bed.
Oxygenated blood from the placenta follows a specific pathway utilizing three major shunts:
- The Ductus Venosus (DV): Oxygen-rich blood (~80% saturation) travels from the placenta via the umbilical vein. About 50% of this blood enters the hepatic circulation, while the rest bypasses the liver through the DV, directly entering the inferior vena cava (IVC).
- The Foramen Ovale (FO): As blood from the IVC enters the right atrium (RA), the Eustachian valve preferentially directs this highly oxygenated jet across the FO into the left atrium (LA). This blood then flows to the left ventricle (LV) and out the ascending aorta, ensuring the highest oxygenated blood reaches the coronary and cerebral circulations.
- The Ductus Arteriosus (DA): Deoxygenated blood returning from the superior vena cava (SVC) enters the RA, crosses the tricuspid valve into the right ventricle (RV), and is ejected into the main pulmonary artery. Because PVR is overwhelmingly high, only about 10% of this RV output enters the pulmonary bed. The remaining 90% is shunted right-to-left across the DA into the descending aorta to supply the lower body and return to the placenta via the umbilical arteries.
2. Transitional Circulation: The Shift to Series
The transition from fetal to neonatal circulation is driven by two simultaneous, dramatic hemodynamic events at the moment of birth: the removal of the placenta and the expansion of the lungs.
Hemodynamic Shifts:
- SVR Increases: Clamping the umbilical cord removes the low-resistance placental circuit, causing an immediate, sharp increase in SVR.
- PVR Plummets: The neonate’s first breath replaces alveolar fluid with air. The sudden presence of alveolar oxygen (PAO2) reverses hypoxic pulmonary vasoconstriction, causing massive pulmonary vasodilation and a precipitous drop in PVR.
Closure of the Shunts:
These sudden changes in SVR and PVR alter the pressure gradients across the fetal shunts, prompting their closure:
- Functional FO Closure (Seconds to Minutes): The drop in PVR exponentially increases pulmonary venous return to the LA. Simultaneously, cord clamping decreases IVC return, dropping RA pressure. When LA pressure exceeds RA pressure, the primary septum (septum primum) is pushed against the secondary septum (septum secundum), mechanically closing the FO.
- Functional DA Closure (Hours to Days): The DA is highly sensitive to oxygen and prostaglandins. With the lungs now clearing prostaglandins and arterial oxygen tension rising significantly, the smooth muscle of the DA constricts. Blood flow reverses transiently (left-to-right) before the ductus fully constricts. Anatomic closure (fibrosis into the ligamentum arteriosum) takes several weeks.
- DV Closure (Days): With umbilical venous flow abolished, the DV passively collapses and eventually fibroses into the ligamentum venosum.
Clinical Implications of a Failed Transition
If the normal drop in PVR does not occur (due to meconium aspiration, asphyxia, or primary pulmonary hypoplasia), the neonate remains in a state of Persistent Pulmonary Hypertension of the Newborn (PPHN).
In PPHN, right-sided pressures remain higher than left-sided pressures, maintaining right-to-left shunting across the FO and DA. This results in severe hypoxemia that is often refractory to supplemental oxygen, as the deoxygenated blood continues to bypass the lungs entirely.
